If you’re looking for the best logic probe testers in 2025, I suggest checking out options like the Allsun EM4610A, Elenco LP-560, CTA Tools 3031, and upgraded digital models. These tools are reliable for quick circuit diagnostics, signal testing, and automotive use. They feature bright LEDs, audio alerts, and portable designs that suit hobbyists and professionals alike. Keep exploring further, and you’ll find the perfect tester for your specific needs.
Key Takeaways
- Choose testers with high-speed pulse detection (up to 20 MHz) for accurate transient signal analysis.
- Prioritize models with bright LED indicators and audio alerts for quick, clear diagnostics.
- Opt for portable, ergonomically designed testers suitable for field and workshop use.
- Select tools supporting multiple circuit types (TTL, CMOS, automotive 6/12/24V) for versatile applications.
- Consider durability, ease of use, and additional features like auto-disconnect and overload protection for reliability.

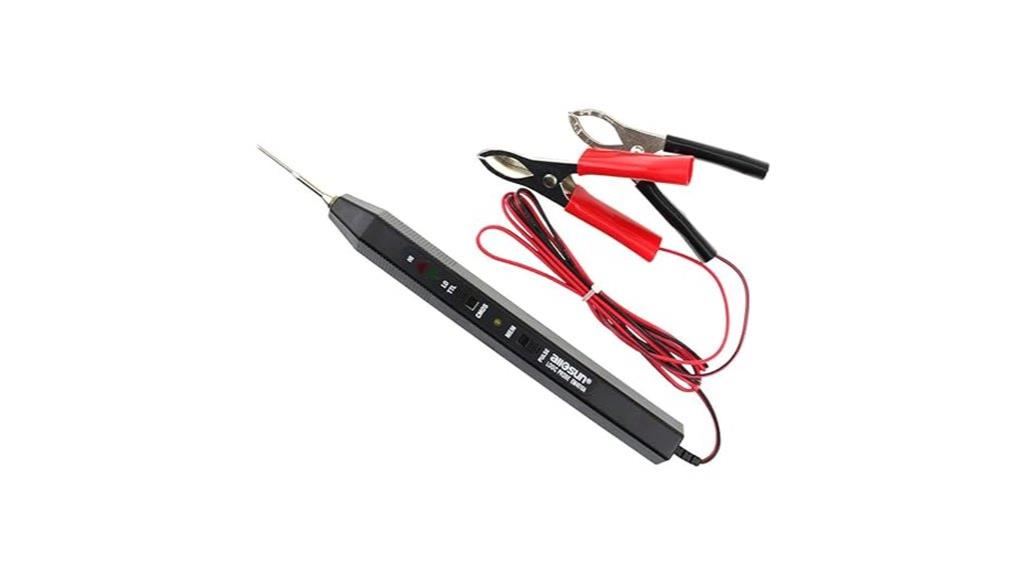

allsun EM4610A Logic Probe Electrical Circuit Tester
If you’re looking for an affordable and straightforward logic probe for basic circuit troubleshooting, the allsun EM4610A is an excellent choice. I find it compact and easy to use, with visual LED indicators and an audio signal to detect high, low, or pulsed logic states. It can capture pulses as short as 30 nanoseconds across a wide frequency range of 20KHz to 20MHz. Powered by the circuit under test with a simple battery, it also protects against voltages up to 20V. Perfect for debugging breadboards, ICs, or automotive circuits, it offers reliable performance at an affordable price.
Best For: hobbyists and DIY electronics enthusiasts seeking an affordable, easy-to-use logic probe for basic circuit troubleshooting.
Pros:
- Compact, handheld pen-style design makes it portable and easy to handle.
- Visual LED indicators and audio signals provide clear, immediate logic state detection.
- Capable of capturing very short pulses (as brief as 30 nanoseconds) across a wide frequency range.
Cons:
- Large clips and non-helical leads can be cumbersome for small components or tight spaces.
- Build quality and ergonomics receive some criticism, with probes and leads considered bulky.
- Clamps are sizable and may be impractical for delicate or miniaturized circuits.

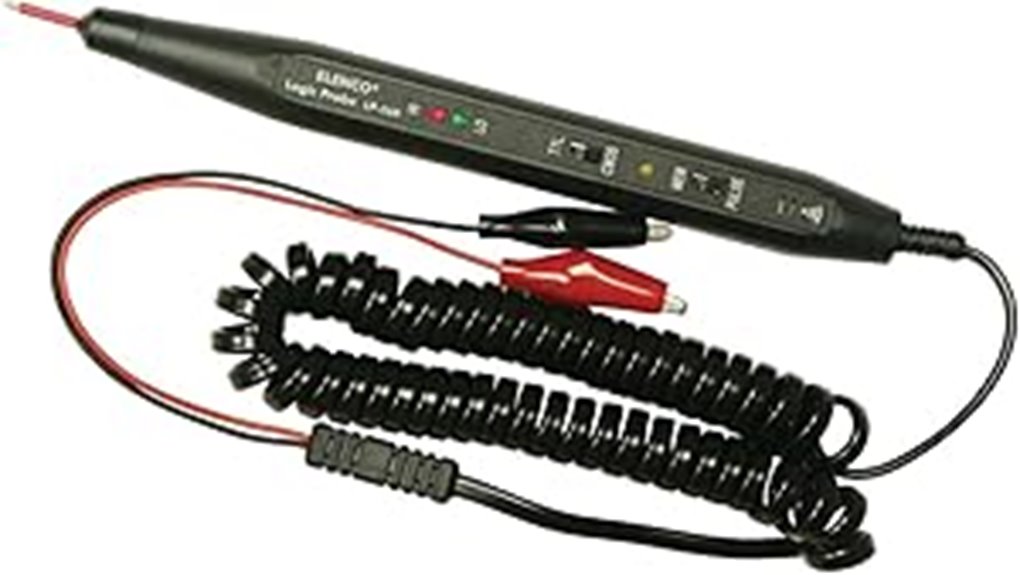

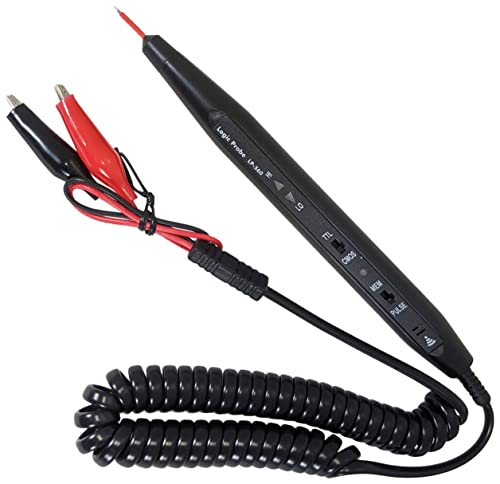

Elenco Electronics LP-560 Logic Probe
The Elenco Electronics LP-560 Logic Probe stands out as an excellent choice for technicians and hobbyists seeking quick and reliable circuit diagnostics. It offers precise measurements of logic levels, pulses, and transient voltages down to 25 nanoseconds, with the ability to capture signals up to 20MHz. The high-intensity LED readouts and audio beeper make troubleshooting intuitive, while features like overload and reverse polarity protection guarantee durability. Its rugged plastic body and circuit-powered operation add to its reliability. Whether working on vintage electronics, microcontrollers, or complex circuits, this probe delivers fast, accurate results, making it a versatile addition to any electronics toolkit.
Best For: electronics technicians and hobbyists seeking quick, accurate diagnostics of digital circuits and logic signals.
Pros:
- Provides precise measurement of logic levels, pulses, and transient voltages up to 20MHz.
- Features high-intensity LED readouts and audio beeper for intuitive troubleshooting.
- Durable, circuit-powered design with overload and reverse polarity protection ensures long-term reliability.
Cons:
- Default crocodile clip may be less convenient; users might prefer aftermarket terminals.
- No batteries included, which could be a minor inconvenience for some users.
- Limited to testing logic signals; not suitable for detailed waveform analysis like oscilloscopes.

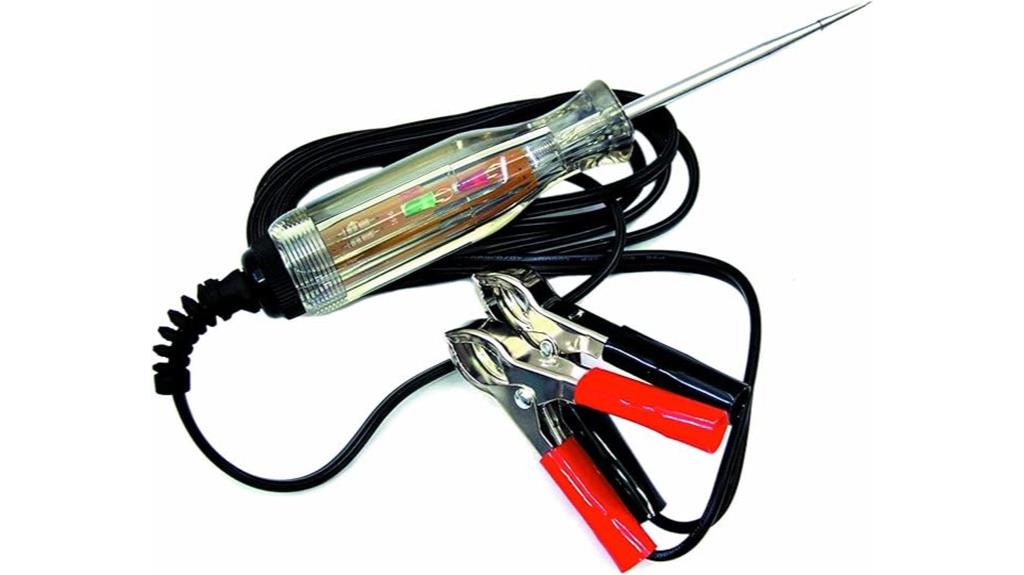

CTA Tools 3031 Computer Safe Auto Logic Probe
Designed to safeguard sensitive vehicle computer circuitry, the CTA Tools 3031 Computer Safe Auto Logic Probe stands out for its high-impedance design, drawing less than 7 milliamps during testing. This feature guarantees it won’t damage delicate electronics. It supports 6, 12, and 24-volt systems, making it versatile for various automotive diagnostics. The insulated 6-foot heavy-duty wire with dual leads and clips provides durability and easy access. Bright dual-color LEDs give clear visual signals, simplifying troubleshooting. Compact and lightweight, it’s perfect for both professional and DIY use, offering reliable, safe testing to identify electrical issues without risking your vehicle’s computer systems.
Best For: automotive technicians and DIY enthusiasts needing a reliable, computer-safe diagnostic tool for electrical system testing across various vehicle voltages.
Pros:
- High-impedance design draws less than 7mA, ensuring safe testing of sensitive vehicle electronics
- Supports multiple voltage systems (6V, 12V, 24V) for versatile automotive diagnostics
- Bright dual-color LEDs provide clear, quick visual signals for efficient troubleshooting
Cons:
- May require familiarity with electrical testing procedures for optimal use
- Heavier or bulkier compared to some handheld testers, potentially less portable
- California Prop 65 warning indicates presence of chemicals harmful with prolonged exposure

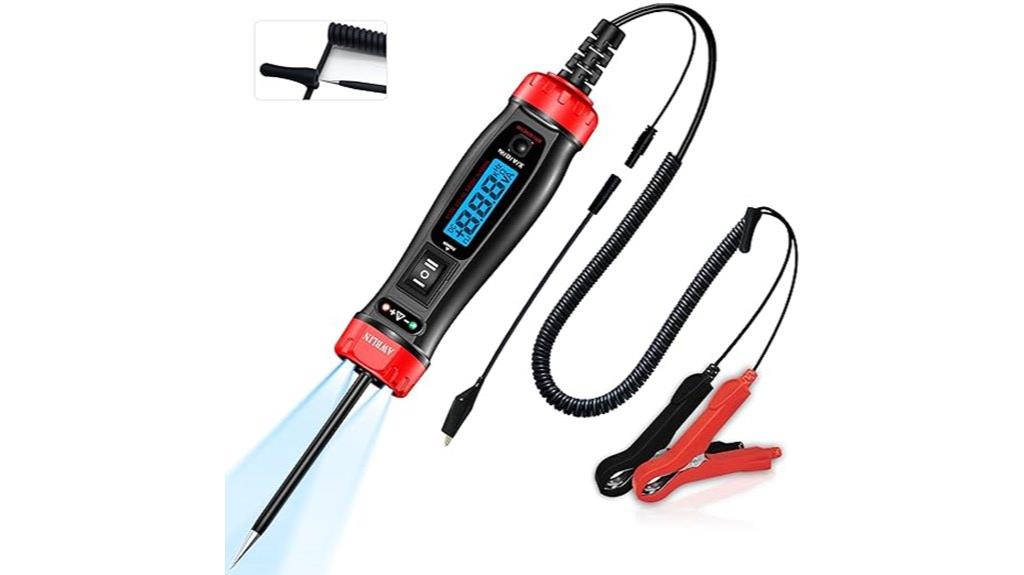

Upgrade Power Circuit Probe Tester with LCD Digital Display
Upgrading your power circuit probe tester with an LCD digital display instantly enhances diagnostic accuracy and ease of use. The multifunctional tester supports various modes like voltage, current, resistance, and frequency, with high-resolution readings of 0.1V/0.1A. Its backlit LCD screen clearly shows voltage and current, while LED indicators differentiate positive and negative poles. The built-in flashlight improves visibility in dark areas, and the extended cable allows testing from different vehicle points without hassle. With overload protection, audible alerts, and safety features, this device guarantees reliable, quick diagnostics, making it an essential tool for automotive troubleshooting and electrical testing.
Best For: automotive technicians, DIY car enthusiasts, and professional electricians seeking accurate and reliable electrical diagnostics.
Pros:
- Supports multiple testing modes including voltage, current, resistance, and frequency for versatile diagnostics.
- Equipped with an LCD digital backlight display and LED indicators for clear, easy-to-read measurements.
- Extended cable length and built-in flashlight enhance testing convenience in various vehicle locations and dark environments.
Cons:
- Some users find the positive and ground switch labeling could be clearer for beginners.
- The device may automatically disconnect when current exceeds 10A, which could interrupt tests unexpectedly.
- Limited to 5-60VDC input range, so not suitable for testing higher voltage systems without additional equipment.
ALLOSUN All-Sun EM4610A Logic Probe Tester Logic (Troubleshooting), 1 Pack
If you’re looking for an affordable and portable tool to troubleshoot digital circuits quickly, the ALLOSUN All-Sun EM4610A Logic Probe Tester stands out as an excellent choice. It’s compact, lightweight, and powered by the circuit under test, operating on 5-15V batteries. The device provides clear visual LED signals and audio alerts for logic levels and pulses, even capturing events as short as 30 nanoseconds. It’s easy to operate, supports TTL and CMOS, and works well with digital and automotive circuits. Many users find it invaluable for quick diagnostics, IC testing, and troubleshooting without needing an oscilloscope.
Best For: electronics hobbyists, automotive technicians, and students needing an affordable, portable tool for quick digital circuit troubleshooting.
Pros:
- Compact, lightweight design for easy portability and use in tight spaces
- Supports both TTL and CMOS logic levels with visual and audio signals for clear diagnostics
- Powered by the circuit under test, eliminating the need for external batteries or power sources
Cons:
- Oversized clamps may be impractical; users often replace them with smaller alligator clips or custom connectors
- Beeper volume is modest, which might be insufficient in noisy environments
- Limited to detecting logic signals and pulses, not suitable for detailed waveforms or complex signal analysis

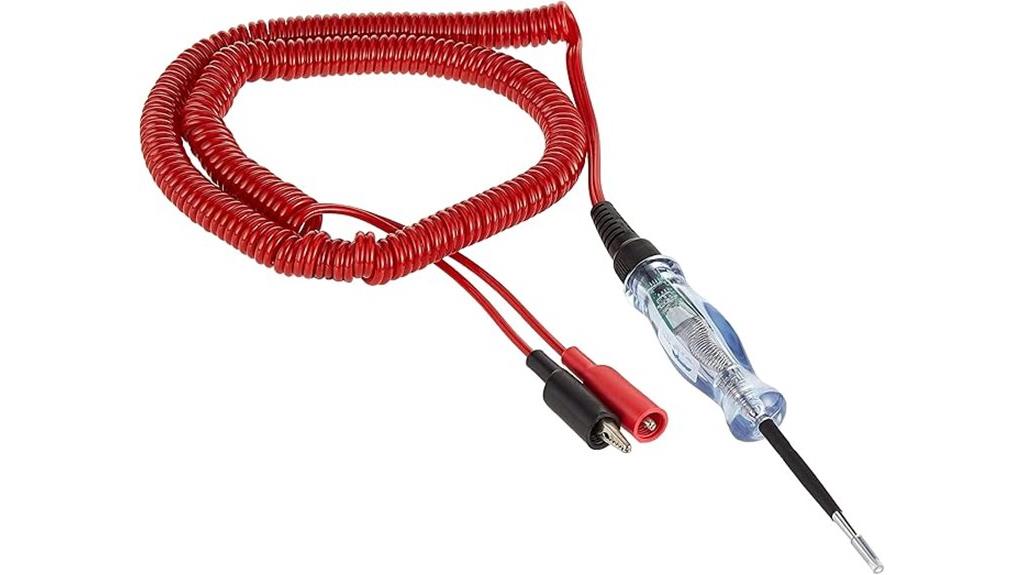

OTC 3631 Heavy-Duty Logic Probe Tester , Red
The OTC 3631 Heavy-Duty Logic Probe Tester, Red, stands out as an ideal choice for automotive technicians and DIY enthusiasts who need a durable and versatile diagnostic tool. It tests voltage from 3 to 26 volts, suitable for 6, 12, and 24-volt systems, and features bright LEDs to identify ground, power, and pulse signals. Its high impedance input guarantees safe testing of sensors and computer circuits. Designed with an ergonomic handle, stainless steel insulated probe, and a heavy-duty coil cord, it’s built for longevity. While it doesn’t measure resistance or continuity, it excels at detecting pulses and voltage signals, making it a reliable, portable diagnostic companion.
Best For: automotive technicians and DIY enthusiasts seeking a durable, easy-to-use tool for diagnosing electrical issues in 6, 12, and 24-volt automotive systems.
Pros:
- Bright LED indicators for quick signal interpretation of ground, power, and pulse signals
- High impedance input ensures safe testing of sensitive computer circuits and sensors
- Sturdy construction with ergonomic handle and heavy-duty coil cord for long-lasting use
Cons:
- Does not measure resistance or perform circuit continuity tests
- Cannot confirm probe energization until contact is made, which may lead to uncertainty
- Long coil cable can recoil or cause tension issues if overstretched
Tool Aid S&G 28100 Computer Safe Automotive Logic Probe, One Size, Factory
For automotive technicians and electronics enthusiasts seeking a reliable, easy-to-use diagnostic tool, the Tool Aid S&G 28100 Computer Safe Automotive Logic Probe stands out. Its compact design and low current draw make it safe for sensitive electronics, while the dual-color LED indicators quickly show ground or positive voltage. The polarity-independent leads and sharp probe tip allow for precise testing in tight spaces. Suitable for 6, 12, and 24-volt systems, it’s versatile and durable, with positive user feedback. Whether troubleshooting vehicle circuits or electronics projects, this logic probe offers accurate readings, making diagnostics faster and more efficient.
Best For: automotive technicians, electronics enthusiasts, and DIYers seeking a safe, reliable, and easy-to-use diagnostic tool for circuit testing and troubleshooting.
Pros:
- Safe for sensitive electronics due to low current draw (~10mA at 12V)
- Dual-color LED indicators provide quick and clear circuit status
- Compact, durable design with features like sharp probe tip and pin extension for tight spaces
Cons:
- Some users desire longer battery cables and improved clips for extended reach
- The product may require verification of voltage levels before testing to ensure safety
- As a manual diagnostic tool, it may not replace more advanced electronic testers for complex diagnostics

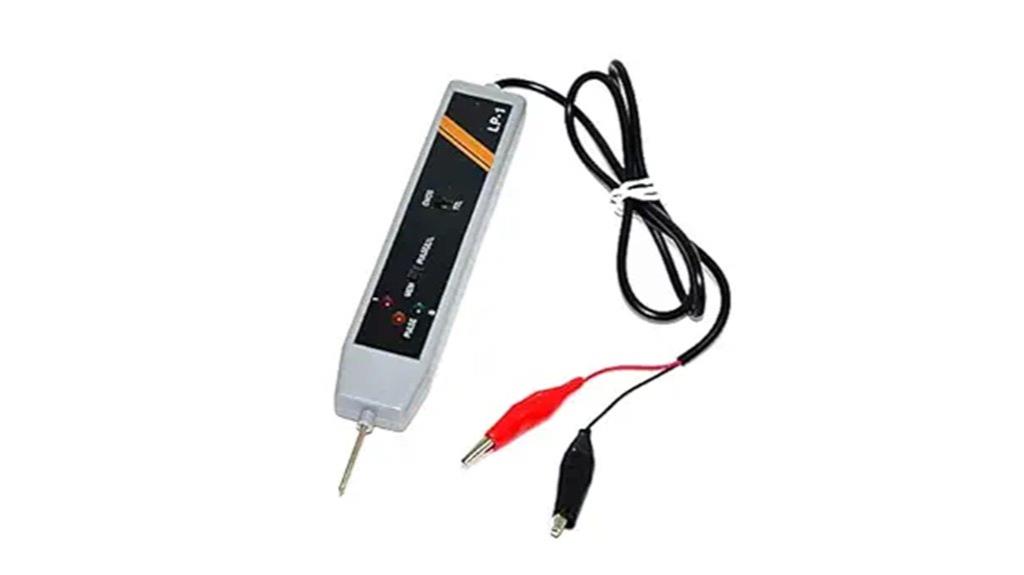

Logic Probe for Digital Logic Testing
A handheld, pen-style design makes the Logic Probe DTL TTL CMOS Pulse Memory Logic Tester ideal for quick, on-the-go diagnostics. It’s compact, with long leads that make testing easier across various circuits like DTL, TTL, and CMOS. Powered by the circuit under test, it works with 5-15V batteries and offers clear visual feedback via bright, color-coded LEDs indicating high, low, or pulsed signals. Although it lacks internal memory, it’s perfect for quick checks and troubleshooting. Some users report a bulky feel and inconsistent audio alerts, but overall, it’s a handy tool for basic logic signal verification in diverse electronics projects.
Best For: electronics hobbyists and technicians needing quick, portable testing of digital logic signals in circuits like DTL, TTL, and CMOS.
Pros:
- Compact, pen-style design for easy handling and on-the-go diagnostics
- Bright, color-coded LEDs provide clear visual indication of logic states
- Powered by the circuit under test, eliminating the need for external power sources
Cons:
- Lacks internal memory and advanced features found in more sophisticated tools
- Some units may have faulty components or missing features like the audio buzzer
- Bulky feel and overly bright LEDs can be inconvenient during extended use
Cldkem Logic Probe for Digital Logic Testing
If you’re looking for an easy-to-use tool to troubleshoot digital circuits, the Cldkem Logic Probe stands out with its visual LED indicators and audio alerts, making it ideal for both beginners and experienced technicians. This handheld, pen-style tester works with DTL, TTL, and CMOS circuits, powered directly by the circuit under test with a 5-15V battery. Its color-coded LEDs quickly show high (red), low (green), or pulsed (orange) states, while audio alerts confirm pulse detection. The device features switches to select circuit type and pulse mode, plus a reset button. It provides reliable, instant feedback, simplifying complex troubleshooting tasks in a compact, portable design.
Best For: electronics beginners and technicians seeking a portable, easy-to-use tool for quick digital logic troubleshooting in circuits like DTL, TTL, and CMOS.
Pros:
- User-friendly with visual LED indicators and audio alerts for instant feedback
- Portable pen-style design ideal for on-the-go testing in various environments
- Compatible with multiple circuit types and powered directly from the circuit under test
Cons:
- Requires a 5-15V battery, which may need frequent replacement or charging
- Limited to basic logic level detection; no advanced features like waveform analysis
- Might be less effective for highly complex or high-speed digital circuits
Logic Tester Pen for Digital Circuit Debugging (1 Pack)
The Logic Tester Pen for Digital Circuit Debugging (1 Pack) stands out as an ideal choice for students, hobbyists, and developers seeking an affordable, easy-to-use testing tool. It allows quick voltage level measurements without a multimeter, supporting 5V and 3.3V logic signals. The elastic probe makes handheld testing straightforward and precise. Its three indicator lights—red for high, green for low, and blue for intermediate or disconnected—provide clear visual feedback. Designed for simplicity, it’s perfect for circuit debugging and learning. While not a replacement for professional tools, its affordability and ease of use make it a popular choice for quick diagnostics and educational purposes.
Best For: hobbyists, students, and developers seeking an affordable and straightforward tool for quick digital circuit voltage testing and debugging.
Pros:
- Easy to use with visual indicator lights for quick diagnostics
- Supports common logic levels of 3.3V and 5V, suitable for many development boards
- Portable and handheld with elastic probe for convenient testing on the go
Cons:
- Measurement accuracy may have a 0-1cm error due to manual testing
- Spring-loaded tips may vary in reliability and can be confusing to some users
- Not a professional multimeter replacement; limited to simple circuit testing
ANCEL PB100 Automotive Power Circuit Probe Tester
When diagnosing vehicle electrical systems, precision and ease of use are essential, especially for professionals and DIY enthusiasts alike. The ANCEL PB100 automotive power circuit probe tester simplifies troubleshooting by replacing multiple tools like multimeters and test lights. It supports 12V and 24V systems and offers four diagnostic modes: DC Voltage, AC Voltage, Resistance, and Diode testing. The stainless steel probe, backlit LCD, and searchlight make testing in dark or tight spaces straightforward. With long cables, overload protection, and alligator clips, it’s safe, durable, and versatile—perfect for quickly identifying shorts, open circuits, relays, and more across various vehicle types.
Best For: automotive technicians, professional mechanics, and DIY enthusiasts seeking an all-in-one, easy-to-use electrical testing tool for quick diagnostics.
Pros:
- Supports 12V/24V systems with four precise diagnostic modes, reducing the need for multiple tools
- Features a durable stainless steel probe, backlit LCD, and searchlight for testing in dark or tight spaces
- Long cables and alligator clips provide flexibility for reaching hard-to-access areas
Cons:
- May require familiarity with electrical testing procedures for optimal use
- No internal batteries, relying solely on vehicle power or 12V adapter, which might limit portability in some scenarios
- Extended cables can be cumbersome in very confined spaces or cluttered environments
12 Volt Automotive Test Light and Circuit Probe Kit
For automotive technicians and enthusiasts seeking reliable circuit diagnostics, the Volt Automotive Test Light and Circuit Probe Kit stands out due to its extensive voltage testing capabilities and durability. It supports 6-24V systems, making it versatile for cars, trucks, motorcycles, and even larger machinery like excavators. The kit includes features like short circuit tracing, diode testing, component activation, and continuity checks, all with high accuracy. Its rugged design withstands drops and shop wear, ensuring long-term reliability. With built-in LED lights and a one-channel lab scope, this kit simplifies complex electrical troubleshooting, saving time and enhancing diagnostic confidence in any vehicle.
Best For: automotive technicians, motorcycle mechanics, and DIY enthusiasts needing reliable and versatile electrical diagnostic tools for 6-24V systems across various vehicle types.
Pros:
- Supports a wide voltage range (6V-24V) suitable for diverse automotive and machinery applications
- Durable, rugged design that withstands drops and shop conditions for long-term use
- Features advanced functions like diode testing, short circuit tracing, component activation, and a built-in lab scope for detailed diagnostics
Cons:
- Operates exclusively in DC voltage range, limiting use with AC systems or components
- Some users report minor manufacturing defects or quality control issues
- May be less comprehensive than higher-end professional diagnostic tools, requiring supplementary equipment for complex issues
Performance Tool W2991 Computer Safe Logistic Probe
If you need a reliable and safe diagnostic tool for modern vehicle electronics, the Performance Tool W2991 Computer Safe Logistic Probe stands out as an excellent choice. Its machined exterior and lightweight design make it easy to handle, while the 10-foot recoil cord provides ample reach. Compatible with 6, 12, and 24-volt systems, it can test high and low voltage circuits, including sensitive engine and body controls. The bright red and green LEDs offer clear signal interpretation, and the heavy-gauge, color-coded clips ensure secure connections. With its ability to safely test various electrical components, this probe is perfect for troubleshooting complex automotive electronics confidently.
Best For: automotive technicians and DIY enthusiasts seeking a safe, reliable, and versatile electrical diagnostic probe for modern vehicle systems.
Pros:
- Safe testing with low current draw (<7mA), protecting sensitive electronics
- Compatible with 6, 12, and 24-volt systems for broad vehicle application
- Bright LED indicators and color-coded clips for easy, accurate signal interpretation
Cons:
- Limited to electrical testing; does not diagnose mechanical issues
- May require familiarity with vehicle electrical systems for effective use
- Slightly heavier weight (8 ounces) might be less ideal for prolonged handheld use

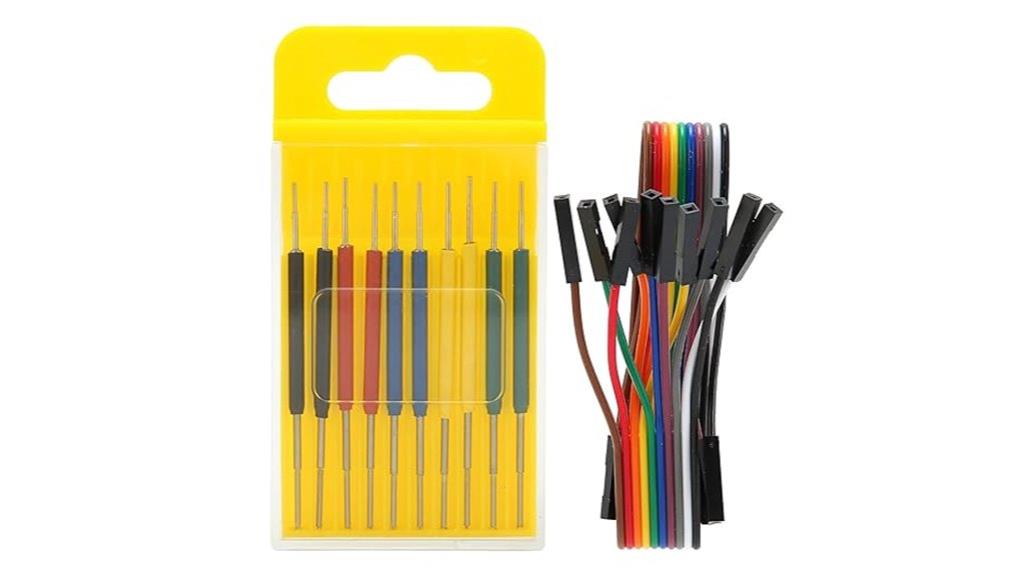

10PCS Soic Test, Logic Probe, Ic Tester Suitable for Microelectronics Manufacturing and Repair
The PCS SOIC test, logic probe, and IC tester stand out as essential tools for professionals involved in microelectronics manufacturing and repair, especially when accuracy and efficiency are critical. Designed with durability in mind, it includes 10 micro IC hook clips compatible with SOP, SOI, and IC chips, featuring color-coded channels for synchronized testing. Made from ABS material, it offers long-lasting wear resistance and a sleek appearance. Installation is quick and straightforward, transmitting data via SOIC test leads without soldering. Safety features like insulating clamp covers prevent short circuits, ensuring safe, reliable operation during high-precision microelectronic diagnostics.
Best For: electronics repair technicians and microelectronics manufacturers needing reliable, durable IC testing tools with quick installation and synchronized multi-channel testing.
Pros:
- Durable ABS construction ensures long-lasting wear resistance and aesthetic appeal
- Color-coded clips facilitate multi-channel synchronous testing for enhanced accuracy
- Easy, solderless connection for quick setup saves time and reduces effort
Cons:
- Clamp diameter of approximately 0.13mm may be too small for some larger or thicker ICs
- Requires careful handling to avoid overloading or damaging components due to electrical limits
- Limited to SOIC, SOP, and IC chips, not compatible with other package types

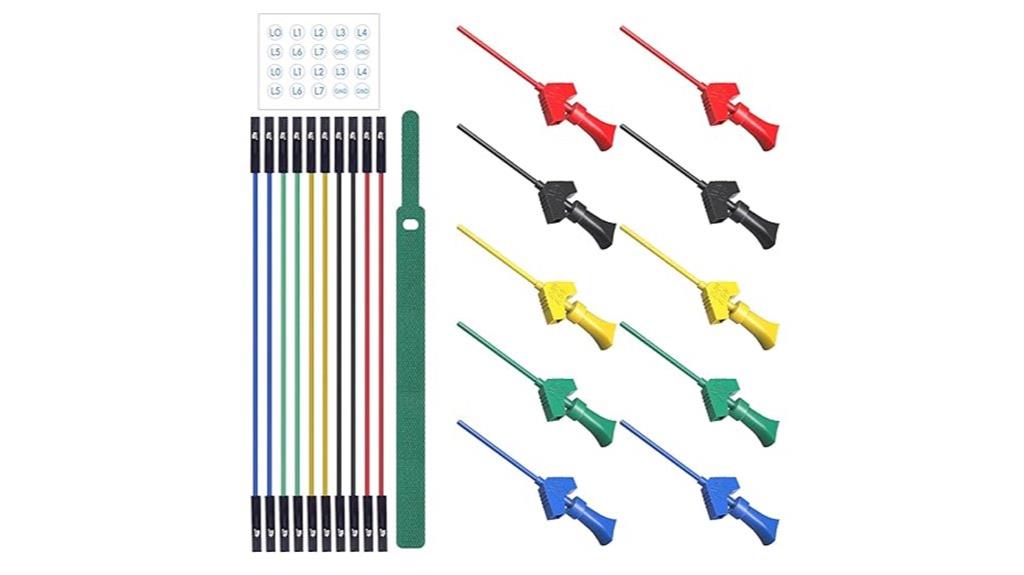

Goupchn SMD IC Test Hook Clips & Jumper Wires Kit
The Goupchn SMD IC Test Hook Clips & Jumper Wires Kit stands out as an ideal choice for electronics enthusiasts and technicians who need precise and secure connections when diagnosing complex circuits. It includes 10 durable test hooks with retractable springs, silicone jumper wires in five colors, stickers for channel identification, and a transparent storage box. The test hooks latch onto tiny SMD pins without damage, while the flexible silicone wires resist wear and simplify wiring in tight spaces. This kit is versatile, compatible with logic analyzers and oscilloscopes, and praised for its build quality. It’s perfect for accurate testing, debugging, and small electronics repair.
Best For: electronics hobbyists, technicians, and engineers seeking precise, secure connections for testing and debugging small SMD components.
Pros:
- Secure grip on tiny SMD pins without causing damage or shorts
- Flexible, durable silicone jumper wires with color coding for easy organization
- Includes comprehensive accessories like stickers, storage box, and velcro strap for convenience
Cons:
- Jumper wires may be slightly short for larger or more complex setups
- Some wires might not lock perfectly, affecting connection stability
- Limited color options could lead to channel confusion in extensive testing scenarios
Factors to Consider When Choosing a Logic Probe Tester
When selecting a logic probe tester, I focus on several key factors to guarantee it meets my needs. Compatibility with different circuits, voltage range coverage, and signal detection speed are vital for accurate diagnostics. Additionally, I consider build durability and ease of use to make my testing process efficient and reliable.
Compatibility With Circuits
Choosing a logic probe tester that seamlessly works with your circuits requires careful attention to compatibility factors. First, ensure the tester matches your circuit’s voltage levels, whether it’s 5V, 12V, or 24V, to prevent damage or inaccurate readings. It’s essential to verify that the tester can identify the logic family used, like TTL, CMOS, or DTL, so you get reliable results. Additionally, check if the device supports pulse detection and pulse width measurement, especially if your signals are fast or complex. The probe’s input impedance should suit your circuit to avoid loading effects or disturbances. Finally, confirm that the input voltage and current ratings align with or exceed your circuit’s maximum specifications, ensuring safe and effective operation.
Voltage Range Coverage
Ensuring your logic probe covers the correct voltage range is crucial for accurate diagnostics and device safety. I always check that the probe supports voltages from about 3V to 40V, matching my circuit’s operating levels. It’s essential the device detects both AC and DC signals if I’m working with mixed power sources. I also verify if the probe can handle transient voltages and pulses, especially those as short as 25 nanoseconds, to catch fast signal changes. Overvoltage protection matters too; I avoid models that exceed my circuit’s maximum voltage to prevent damage. Finally, I confirm the input impedance is high enough to prevent loading the circuit, ensuring my readings stay accurate regardless of voltage levels. Covering these factors helps me diagnose safely and effectively.
Signal Detection Speed
Signal detection speed is a critical factor because it determines how quickly a logic probe can identify and display changing signals. In high-speed digital circuits, rapid pulse detection is essential for accurate diagnostics. Probes capable of capturing pulses as short as 25-30 nanoseconds allow me to observe quick logic transitions without missing transient events. Detecting signals at frequencies up to 20 MHz or higher ensures I can monitor fast-changing signals reliably. A slow detection speed may cause me to overlook brief pulses, leading to incomplete or inaccurate troubleshooting. Choosing a probe with a fast response time helps me efficiently identify intermittent signals and fleeting glitches, which are often vital in diagnosing complex or high-frequency circuits. Speed in detection directly impacts the effectiveness of my troubleshooting process.
Build Durability
When selecting a logic probe tester, build durability is essential because it directly impacts the device’s longevity and reliability. I look for testers made from high-quality, impact-resistant plastics or metals that can withstand frequent use and accidental drops. Reinforced joints and strain reliefs on leads and probes are vital, as they prevent damage during testing. Weather-resistant or sealed casings protect internal components from dust, moisture, and environmental stressors, extending the product’s lifespan. I also prioritize models with robust, long-lasting LEDs and electronic parts that maintain performance over time. Finally, ergonomic grips and lightweight construction reduce physical stress during extended use, ensuring the device remains reliable and durable through heavy-duty testing sessions.
Ease of Use
Choosing a logic probe tester that’s easy to use can considerably streamline your troubleshooting process. I look for devices with clear, intuitive indicators like color-coded LEDs and audible signals, which make it simple to interpret circuit states at a glance. Simple controls, such as switches for selecting logic types or pulse detection modes, reduce setup time and minimize confusion. Ergonomically designed probes with comfortable grips help me handle them comfortably during long troubleshooting sessions. Bright LEDs with quick response times provide visual feedback that’s easy to read, avoiding misinterpretation. Additionally, clear instructions or minimal configuration requirements assure I can operate the tester efficiently, whether I’m a beginner or an experienced technician. An easy-to-use device saves time and enhances overall diagnostic accuracy.
Indicator Clarity
Clear indicator lights are essential for accurately interpreting circuit states during testing. High-visibility LEDs ensure I can quickly see whether a signal is high, low, or pulsing, reducing guesswork. Multi-color LEDs are especially helpful, allowing me to distinguish between different logic levels and pulse signals with minimal confusion. The brightness and contrast of these indicators matter—if they’re too dim or washed out, I might misread the results, especially in low-light environments. I also find that audible signals or beepers, used alongside visual indicators, boost my confidence, particularly when working in noisy or hard-to-see areas. Consistent, unambiguous responses from the indicators help me avoid misdiagnosis and speed up troubleshooting, making the entire testing process more reliable and efficient.
Power Source Options
The power source you select for a logic probe tester can considerably influence how and where you use it. Some models draw power directly from the circuit under test through their leads, which means no batteries are needed and testing is more streamlined. Others include internal batteries or rechargeable sources, allowing independent operation—ideal for portability. Automotive probes typically tap into vehicle circuits (5-15V), providing safe, reliable power without risking damage to sensitive electronics. Your choice impacts mobility: battery-powered probes excel in fieldwork, while circuit-powered ones are better for controlled lab environments. It’s also essential to contemplate overload protection and voltage compatibility to prevent damage during testing. Ultimately, selecting the right power source depends on your specific testing needs and environment.
Additional Safety Features
When selecting a logic probe tester, prioritizing safety features is essential to protect both the user and the device. Look for testers with overload protection, such as warning alerts or automatic circuit disconnection, to prevent damage during testing. Reverse polarity protection is vital, ensuring safe operation if connections are made incorrectly. Choose models with insulated probes and high-visibility LED indicators to reduce the risk of electrical shock and make testing safer and easier. Built-in safety indicators like alert lights or audible alarms can warn you of unsafe voltage levels or circuit faults, avoiding potential hazards. Additionally, verify that the device complies with relevant safety standards and certifications, giving you confidence in its safety performance during use.
Frequently Asked Questions
How Do Different Logic Probes Handle High-Frequency Signal Testing?
Different logic probes handle high-frequency signals by offering specialized features like high bandwidth, fast response times, and minimal signal loading. I look for probes with proper impedance matching and high sampling rates to guarantee accurate readings without distortion. Some models also include active circuitry or buffering to improve performance at high frequencies. Using the right probe helps me accurately diagnose fast digital circuits without missing vital signal shifts.
What Safety Features Are Most Important in Auto-Safe Logic Probes?
When choosing auto-safe logic probes, I prioritize features like over-voltage protection, current limiting, and insulated leads. These safety features prevent damage to the tester and protect me from electrical shocks. An auto shut-off function is also vital, ensuring the device powers down if it detects unsafe conditions. Overall, these features give me peace of mind, making my testing safer and more reliable.
Can Logic Probes Detect Intermittent Circuit Faults Effectively?
Absolutely, I’ve seen logic probes catch intermittent faults faster than a lightning strike! They’re surprisingly effective because they can detect brief, elusive signal changes that might slip past other tools. By monitoring real-time signal activity, they help me identify flaky connections or sporadic issues that cause unpredictable circuit behavior. With the right probe, you can confidently track down those sneaky faults that seem to appear and disappear like magic.
How Compatible Are Logic Probes With Various Circuit Board Types?
Logic probes are highly compatible with various circuit board types, including digital, analog, and mixed-signal boards. I’ve found they work well across different voltages and component configurations, making them versatile tools for troubleshooting. However, I recommend checking the specifications of each probe to verify it matches your specific circuit type. Overall, they’re reliable for most common circuit boards, simplifying diagnosis and repair tasks.
What Maintenance Is Required to Ensure Long-Term Accuracy of Logic Testers?
To keep my logic testers accurate over time, I regularly clean the probes with alcohol and a soft brush to remove dust and debris. I also check the batteries and replace them if needed, ensuring consistent power. Periodically, I calibrate the device as per the manufacturer’s instructions and store it in a protective case to prevent damage. These simple steps help me maintain reliable, precise diagnostics every time.
Conclusion
So, which of these top picks will you trust to unravel your circuit mysteries? I’ve shared some incredible options, but the true game-changer is yet to be revealed. Don’t settle for less—your next diagnosis could depend on it. Ready to make the smartest choice? Dive deeper, weigh your needs, and prepare for the unexpected. Because in the world of circuit troubleshooting, one test can change everything—are you ready to discover what’s next?
