Finding the best arcade cabinet wiring bundles can be challenging due to the variety of options available. The top pick for overall performance is the Zero Delay USB Encoder Wire Harness because of its reliability and compatibility. For those looking for affordability, the Arcity 20 Pcs Arcade Button Wires Harness offers excellent value, while the LED Arcade DIY Parts Kit caters to advanced builders wanting a comprehensive setup. The main tradeoffs often involve balancing build quality, ease of installation, and price. Continue reading for a detailed breakdown to match your specific arcade project needs.
Key Takeaways
- The Zero Delay USB Encoder Wire Harness stands out for its reliability and universal compatibility with arcade buttons and joysticks.
- Bundles with LED lighting components tend to be more expensive but offer enhanced visual effects for custom arcade builds.
- Compatibility with different arcade systems (JAMMA, USB, Raspberry Pi) is a key factor influencing bundle selection.
- Higher pin count wiring looms generally simplify complex setups but can be overkill for small or beginner projects.
- Cost-effective bundles often involve tradeoffs in build quality or feature set, so evaluating your long-term needs is critical.
More Details on Our Top Picks
Guwarry 20 Pcs/Lot Zero Delay USB Encoder Wire Harness with 0.187 Inch Terminals for HAPP Style Arcade Buttons & American Style Arcade Joysticks
This harness stands out for its compatibility with HAPP style arcade buttons and joysticks, offering a straightforward plug-and-play solution that simplifies wiring. Compared with the Arcity 20 Pcs harness, it provides a longer cable length, which can be advantageous for larger setups, though it might be less suitable for very compact cabinets. The JST XH2.45 male connection on one side and 0.187 inch terminals on the other ensure a secure fit, reducing connection issues over time. While the product performs reliably in arcade projects, it’s noteworthy that some users report that the length might not be ideal for tight spaces, and the cable color options are limited. This pick makes the most sense for builders seeking a dependable, easy-to-install wiring bundle for American or HAPP style controls.
Pros:- Longer cable length (210mm) for flexible setups
- Secure JST XH2.45 connection reduces connection failures
- Widely used in arcade machine DIY projects
Cons:- Cable length may be excessive for small or tight cabinets
- Limited color options for wiring identification
Best for: DIY arcade enthusiasts building or upgrading larger cabinets requiring flexible wiring length and compatibility with standard arcade controls.
Not ideal for: Small home arcade projects where space is limited and a shorter, more compact wiring harness would be preferred.
- Connector Type:XH2.54
- Cable Type:USB
- Compatible Devices:Arcade Buttons & Joysticks
- Number of Wires:20
- Length:8 inches
- Terminals:0.187 inch
Bottom line: Ideal for DIYers seeking a reliable, easy-to-use wiring bundle for standard arcade controls in larger setups.
Arcity 20 Pcs Arcade Button Wires Harness Cable for Zero Delay USB Encoder PCB with 0.187″ 4.8mm Terminals Compatible with Micro Switches HAPP Style Arcade Buttons Joysticks
This set is a great choice for newcomers to arcade DIY projects, thanks to its straightforward 22cm length and compatibility with micro switch controls. Compared to the Guwarry harness, it offers similar terminal sizes but is slightly shorter, which can be more suitable for compact cabinets. The durable build and clear labeling on each wire facilitate easier installation and troubleshooting, especially for users unfamiliar with wiring standards. However, some users mention that the cable length might be restrictive for larger arcade setups, and the color coding could be more varied. This product makes the most sense for beginners focusing on small to medium-sized arcade builds or quick upgrades without complex wiring needs.
Pros:- Ease of installation with pre-cut length (22cm)
- Durable construction suitable for frequent use
- Clear wiring labels streamline setup
Cons:- Cable length may be too short for large arcade cabinets
- Limited color options for wiring identification
Best for: Entry-level DIY arcade builders or hobbyists working on smaller arcade or MAME projects.
Not ideal for: Advanced arcade enthusiasts requiring longer cables or more customization options for extensive control panels.
- Connector Type:XH2.45 Male
- Cable Type:USB
- Compatible Devices:Arcade Buttons & Joysticks
- Number of Wires:20
- Length:8.66 inches
- Terminals:0.187 inch (4.8mm)
Bottom line: Perfect for beginners designing small or medium-scale arcade systems with minimal wiring complexity.
Kiro&Seeu 28 Pins Jamma Harness Cabinet Wire Wiring Loom for Arcade Game PCB Video Board Machine
This Jamma harness excels in connecting standard arcade PCBs with its 56-pin (2×28) configuration, making it a solid choice for full-sized cabinets. Compared with the Guwarry USB harness, it offers a more comprehensive wiring solution suitable for classic arcade setups, though it requires more technical understanding for proper installation. The use of 22AWG wire minimizes power loss, which is a significant advantage over cheaper, thinner wiring. The inclusion of terminal forks for all voltages and standard monitor connectors simplifies power and video connections, but some users report that the harness’s bulkiness can be unwieldy in tight spaces. It’s best suited for serious arcade restorers or builders who need a reliable, full-connection loom for JAMMA or PCB-based projects.
Pros:- Uses high-quality 22AWG wire for minimal power loss
- Full grounding loop for control reliability
- Includes terminal forks for all voltage connections
Cons:- Bulkier and more complex to install in small enclosures
- Requires more technical knowledge for proper wiring
Best for: Experienced arcade builders or restorers working on JAMMA cabinets or multi-connection arcade systems.
Not ideal for: Beginners or small DIY projects where a simple, lower-wiring harness would suffice.
- Connector Type:2×28 Pins (56 Pin total)
- Wire Gauge:22 AWG
- Cable Length:5 feet
- Voltage Support:+5V, +12V, GND
- Video Signal:Standard monitor connector
- Grounding:Full grounding loop
Bottom line: Designed for those building or restoring JAMMA or PCB arcade cabinets that require robust, high-quality wiring.

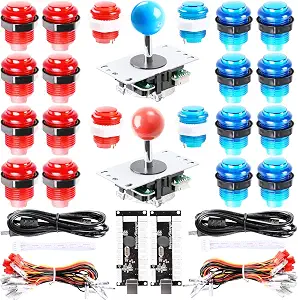

Easyget LED Arcade DIY Parts 2x Zero Delay USB Encoder + 2x 8 Way Joystick + 20x LED Illuminated Push Buttons for Mame Jamma Arcade Project Red + Blue Kits
This comprehensive kit offers everything needed for a two-player arcade build, including zero delay USB encoders, illuminated buttons, and joysticks, making it ideal for beginners and those wanting a ready-to-assemble system. Compared to individual wiring harnesses like the Guwarry or Arcity options, this set provides a full package, simplifying the process of creating a functional arcade cabinet. The LED illumination and ergonomic button design enhance gameplay experience, though some advanced users might find the wiring less customizable. The size and weight make it suitable for tabletop or compact cabinet setups, but less so for large, dedicated arcade builds. This kit is best suited for hobbyists and newcomers aiming for a quick, all-in-one solution to launch their arcade projects efficiently.
Pros:- Includes all essential components in one package
- Zero delay USB encoding for responsive gameplay
- LED illuminated buttons add visual appeal
Cons:- Less flexible for large or complex control panels
- Wiring may be less customizable compared to separate harnesses
Best for: Novice DIY arcade builders or hobbyists creating 2-player MAME cabinets or small arcade setups.
Not ideal for: Experienced builders seeking highly customizable wiring and control panel configurations.
- Compatible Devices:PC, PlayStation 3, Windows
- Button Quantity:20
- Joystick Type:8-way
- Control Connectivity:USB
- Material:Heat resistant plastic
- Size:8.27 x 4.33 x 5.51 inches
Bottom line: Best for beginners or hobbyists looking for an all-in-one arcade parts kit for quick setup and play.
Arcade Jamma 2x20pins 40 Pin Interface Cabinet Wire Wiring Harness Loom for Arcade Machine Video Game Consoles
This wiring harness stands out for its sturdy construction and thoughtful design, especially compared to the more basic wiring options. The all-pin protection with heat shrink and quick-connect end connectors reduce soldering time and improve reliability. Its design makes it easier for hobbyists and semi-professionals to set up or modify arcade systems without sacrificing quality, which is a common tradeoff with cheaper harnesses. Compared to the KIRO&SEEU 28 Pins Jamma Harness, it offers better protection and easier handling, though it lacks detailed specs and may not fit all custom setups. Best for arcade builders who prioritize durability and ease of connection. Not ideal for complete beginners who need fully labeled, plug-and-play solutions without modifications.
- All pins protected by heat shrink
- Quick connection end connectors
- Plastic sleeves for added protection
- Easy to follow wiring for monitor, speakers, power, coin meter
- No detailed technical specs provided
- Not compatible with Jamma boards directly
Verdict: This harness is perfect for technicians and hobbyists seeking a well-made, reliable wiring solution that simplifies connections.
Pros:- All pins protected with heat shrink for durability
- End connectors designed for quick, solderless connection
- Plastic sleeves add extra protection and organization
- Easy to follow plugs for monitor, speakers, power, coin meter
Cons:- Lacks detailed technical specifications
- Not compatible with Jamma boards directly without modifications
- Limited length options may restrict some setups
Best for: Intermediate arcade enthusiasts and technicians who need durable, easy-to-connect wiring harnesses for custom or refurbished arcade setups.
Not ideal for: Beginners or those seeking a fully pre-labeled, plug-and-play harness without modifications.
- Weight:110g
- Length:80cm/50cm
- Pin Count:40 pins
- Material:Heat shrink, plastic sleeves
- Compatibility:Standard Jamma wiring
- End connectors:Quick connect, no soldering
Bottom line: This wiring harness offers a solid balance of quality and ease of use, making it ideal for experienced builders who want reliable connections.
Sturdy DIY Arcade Console Kit – Metal Base and Acrylic Panel, 2 Player Video Game Machine Case, Supports 8 Buttons Each, Compatible with Pandora Kits (Black)
This arcade cabinet kit excels in its durable materials and straightforward assembly, making it a top choice compared to the more fragile or less customizable options like the Arcade Jamma Wiring Harness. Its metal base and acrylic panel provide stability and a sleek look, ideal for those who want a professional feel for their custom arcade or pinball wall unit. While it supports two players with eight buttons each, it offers wide compatibility with PC systems and various DIY arcade kits, appealing to hobbyists and modders. The main tradeoff is that it requires assembly and some wiring expertise, unlike ready-to-use products. Best suited for DIY enthusiasts wanting a sturdy, customizable arcade case. Not ideal for complete beginners or those seeking an all-in-one preassembled arcade system.
- Heavy-duty metal and acrylic construction
- Supports two players with multiple buttons
- Compatible with USB and Pandora kits
- Easy to assemble for DIYers
- Requires assembly and wiring knowledge
- Limited color options
- Inner dimensions may restrict larger components
Verdict: This kit is perfect for DIYers who want a tough, customizable arcade case with ample room for accessories and controls.
Pros:- Durable metal base and acrylic panel for long-term use
- Supports two players with up to 8 buttons each
- Compatible with various USB and Pandora kits
- Easy to assemble for those with basic DIY skills
Cons:- Requires assembly and some wiring knowledge
- Limited to two players, not suitable for large arcade setups
- Inner dimensions might restrict larger components
Best for: Creative hobbyists and experienced DIYers seeking a reliable, customizable arcade case for personal projects.
Not ideal for: Beginners or those who prefer ready-to-go arcade machines without assembly or wiring tasks.
- Material:Metal base, acrylic panel
- Number of Players:2
- Button Support:Supports 8 buttons per player
- Compatibility:USB arcade kits, Pandora kits
- Dimensions:24″L x 7.71″W x 2.24″H
- Weight:2.8 kg
Bottom line: This case makes an excellent choice for experienced DIYers aiming for a sturdy, customizable arcade cabinet.
How We Picked
In selecting the best arcade cabinet wiring bundles, I evaluated multiple factors that matter to builders and hobbyists. These included the overall build quality, compatibility with common arcade hardware, ease of installation, and value for the price. I prioritized bundles that offered reliable connections and versatility, especially for different arcade systems like JAMMA and USB. The ranking also considers user feedback and the comprehensiveness of each kit, ensuring that both beginners and experienced builders find suitable options. Products with clear documentation and proven durability were rated higher, as these are vital for long-term arcade projects.Factors to Consider When Choosing Best Arcade Cabinet Wiring Bundles
Choosing the right wiring bundle for your arcade cabinet involves several considerations that go beyond just price. Understanding these factors helps ensure your setup is reliable, upgradeable, and suited to your skill level. The right bundle can save you time and prevent future headaches, especially if you plan to expand or modify your arcade system later.Compatibility with Your Arcade System
First, verify that the wiring bundle matches your arcade hardware, whether it’s JAMMA, USB, or a custom microcontroller setup. Bundles designed for specific systems tend to offer more reliable connections and easier integration. Using incompatible wiring can lead to connection issues or mechanical failures, so double-check the pin counts and connector types before buying.
Build Quality and Durability
Wiring bundles should be built with sturdy connectors and high-quality cables to withstand frequent use. Cheaper options often use thin wiring or flimsy connectors that may fail over time. For long-term arcade setups, investing in robust wiring ensures consistent performance and reduces maintenance needs. If you’re building a high-traffic arcade or a permanent installation, prioritize quality over cost.
Ease of Installation and Modification
Simpler wiring harnesses with clear labeling and standardized connectors make setup smoother, especially for beginners. Conversely, more complex bundles with extensive wiring may suit experienced builders aiming for a custom layout. Consider whether the bundle offers enough flexibility for future upgrades or modifications—this can save effort later.
Cost and Value
While budget options can be tempting, they often compromise on durability or compatibility. Conversely, premium bundles with LED lighting and extensive wiring tend to be more expensive but provide enhanced aesthetics and reliability. Evaluating your project scope and long-term goals will help determine whether investing more upfront pays off in the long run.
Additional Features and Accessories
Some wiring bundles include extra features such as LED lighting, jumper wires, or integrated connectors for multiple controllers. These extras can streamline your build and add visual flair but may not be necessary for basic setups. Decide what features are essential based on your project design, and choose bundles that align with your aesthetic and functional goals.
Frequently Asked Questions
Can I use a generic wiring bundle for my arcade project?
Using a generic wiring bundle is possible but not always advisable. Compatibility issues can arise if connectors or pinouts don’t match your hardware, leading to connection failures or damaged components. Investing in a bundle specifically designed for your system or with proven compatibility reduces troubleshooting time and ensures a more reliable connection. Always verify the specifications before purchasing to avoid costly mistakes.
What’s the advantage of bundles with LED lighting components?
Bundles that include LED lighting components not only enable visual customization but also improve user experience by providing clear indicators for button presses or system status. These features add aesthetic value and can make your arcade setup stand out. However, they tend to be more expensive and may require additional power sources or controllers, so consider whether visual effects are a priority for your build.
Is it better to buy a complete wiring kit or individual components?
Buying a complete wiring kit simplifies the assembly process and ensures compatibility among components, which is especially helpful for beginners. Individual components might offer more customization options but require more technical knowledge to assemble correctly. For most hobbyists, a well-reviewed complete kit provides a good balance of convenience and quality, reducing the risk of mismatched parts.
How important is the connector type in wiring bundles?
The connector type directly impacts ease of installation and compatibility. For example, 0.187-inch terminals are common for arcade buttons, but some setups use different sizes or proprietary connectors. Using the correct type minimizes connection issues and makes future upgrades or repairs more straightforward. Always confirm your hardware’s connector specifications before selecting a wiring bundle.
Should I consider future expansion when choosing a wiring bundle?
Yes, planning for future upgrades can save time and money later. Opting for a wiring bundle with extra ports, jumper wires, or higher pin counts allows you to add more buttons, joysticks, or lighting without needing a new setup. This foresight is especially useful if you anticipate expanding your arcade or customizing it further over time.
Conclusion
For most builders, the Zero Delay USB Encoder Wire Harness offers the best balance of reliability and compatibility, making it the ideal overall choice. Those on a tighter budget or starting out should consider the Arcity 20 Pcs Arcade Button Wires Harness for great value without sacrificing essential features. Advanced hobbyists or arcade enthusiasts looking to incorporate lighting will find the LED Arcade DIY Parts Kit provides a comprehensive, upgrade-ready solution. Beginners aiming for a straightforward setup should prioritize bundles with clear labeling and simple connectors, while experienced builders may prefer customizable or higher pin count options for complex projects. Each pick aligns with specific project needs, ensuring every arcade build can find its perfect wiring partner.
